Process Validation

Learn about the stages, types, and examples of process validation, the guidance of FDA and GHTF for validating pharmaceutical manufacturing processes, and how to effectively establish documented evidence of process validation.

process validation done by pharmaceutical workers using a tablet

Published 12 Aug 2022

What is Process Validation?

Process validation is a step-by-step procedure designed to ensure that a manufacturing process can consistently produce quality products. It is performed by a validation team led by the quality assurance head of manufacturers in the pharmaceutical industry. Generally, process validation is done before releasing a new product, when applying any change on an existing product, and for periodically verifying the process. Established at the onset, a protocol should specify how the validation process will be carried out, including the parameters to be monitored, the samples to be taken, and the results to be accepted.

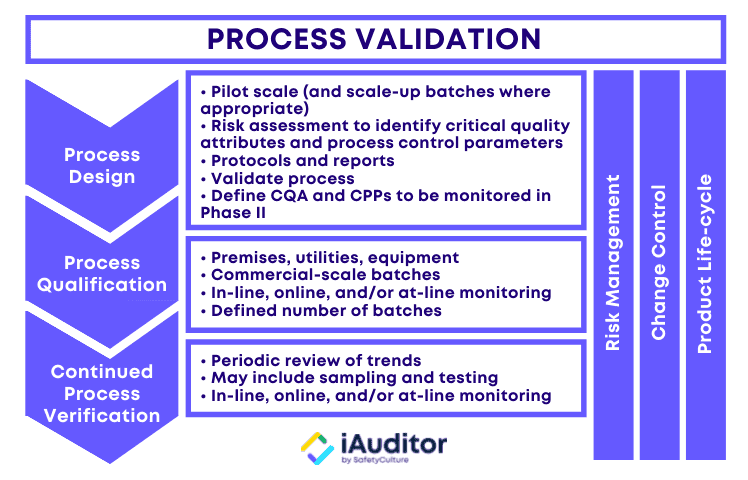

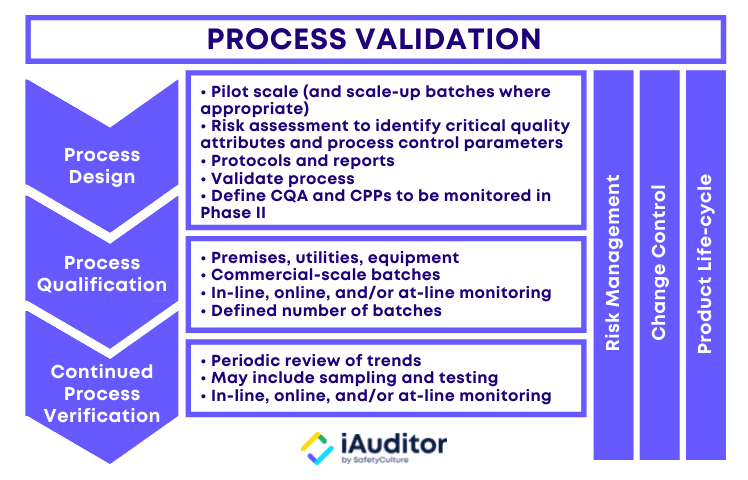

process validation infographic

Phases of Process Validation | Image Source

Process Validation Guidance: FDA vs GHTF

The United States Food and Drug Administration (USFDA) guidance discusses general principles and practices that manufacturers can use to validate manufacturing processes. It covers different categories of drugs such as human, veterinary, and biological or biotechnology products.

A voluntary organization of regulatory agency officials called the Global Harmonization Task Force (GHTF) provided process validation guidelines for medical devices. It aimed to support manufacturers in understanding requirements concerning manufacturing, servicing, and installation processes for medical devices. Eventually, the International Medical Device Regulators Forum (IMDRF) replaced the GHTF, taking over its mission to standardize medical device regulations around the world.

3 Stages of Process Validation

The USFDA emphasizes the collection and evaluation of data in their definition of process validation. It is crucial for the validation team not only to gather information about the activities throughout the lifecycle of the product and process, but also to analyze them for understanding the origins of variation and controlling it accordingly. The 3 stages of process validation are process design, process qualification, and continued process verification:

Stage 1: Process Design

During this stage, the manufacturing process is defined in a way that it can reproduce the delivery of a medicinal product that meets pre-determined specifications and quality attributes. To achieve this, the validation team should have a clear grasp of how the process actually works. Consider the following sources and methods to capture process information:

  • Product development activities
  • Functionality and limitations of production equipment
  • Predicted contributions to variability
  • Design of experiment (DOE) studies
  • Risk analysis tools
  • Experiments or demonstrations at laboratory or pilot scale
  • Computer-based or virtual simulations

This stage also involves process control, planning strategies to reduce input variation and/or adjust for it during manufacturing. Controls commonly consist of material analysis and equipment monitoring at significant processing points. In some cases, the use of process analytical technology (PAT) may be needed.

Stage 2: Process Qualification

The process qualification stage of process validation entails process design evaluation to determine if it is effective for quality production. First, the manufacturing facility should be designed according to the requirements of current good manufacturing practice (CGMP). Next, qualification of utilities and equipment should be conducted such as making sure that they are built and installed in compliance with design specifications. Finally, process performance qualification should be executed through a protocol and documented in a report:

  • Introduction, Objectives, and Scope
  • Production, Quality Assurance (QA), and Quality Control (QC) Responsibilities and Prerequisites (e.g. manufacturing records)
  • Process Validation Study Plan based on Quality Risk Management (QRM)
  • Validation Team (Research and Development, Engineering, Production, QA, and QC)
  • Product Details and Design Considerations
  • List of Materials, Vendors, and Master Formula
  • List of Equipment and Process Flow Chart
  • Brief Manufacturing Process and Assessment of Critical Process Parameters (CPP)
  • In-process Test and Specifications or Critical Quality Attributes (CQA)
  • Sampling, Testing Plan, and Acceptance Criteria and Limit
  • Yield Details (a minimum of three consecutive batches)
  • Analytical Method Validation
  • Finished Product Specification
  • Review of Out-of-Specification (OOS) Test Results, Deviation, and Change Control (CC)
  • Revalidation Criteria
  • Review of Follow-up Action (if any)
  • Summary and Conclusion

Stage 3: Continued Process Verification

After process design and process qualification, the third stage of process validation deals with setting systems to continually ensure that the validated process remains in such a state during routine production. Continued process verification often incorporates the use of statistical process control (SPC), the continuous monitoring and sampling of process parameters and quality attributes, and the scheduled maintenance of the facility, utilities, and equipment. It is essential for good documentation practices to be employed throughout the validation process.

Digitize the way you work

Eliminate manual tasks and streamline your operations.

4 Types of Process Validation

Process validation is often categorized according to the time it is performed in relation to the production schedule. Based on this description, there are 4 types of process validation: prospective validation, retrospective validation, concurrent validation, and revalidation.

Type 1: Prospective Validation

It is implemented when any product will be manufactured with a new formula or within a new facility. Also known as premarket validation, prospective validation is usually carried out before commencing routine production. It is also considered as the foundational type of validation because it is the starting point for any product that will be released under new conditions.

Type 2: Retrospective Validation

It is conducted only when the manufacturing process has not formally undergone a documented validation. Retrospective validation is normally fulfilled with the use of historical data and trends analysis to provide evidence that the process is at a state that it is intended to be in. In most cases, it is no longer an acceptable approach to process validation because any product should have already been validated before its commercial distribution.

Type 3: Concurrent Validation

It is done during regular pharmaceutical production to demonstrate that the process performs at the level that it should in the course of its actual execution. While concurrent validation is still an acceptable approach to process validation under certain circumstances (e.g. manufacturing medically necessary drugs in coordination with the USFDA to prevent a short supply), the agency continues to emphasize that it should only be used rarely.

Recently, an FDA inspection revealed that a US-based manufacturer produced adulterated drug products. To correct their violations, the pharmaceutical company responded with an intention to implement concurrent validation. However, the USFDA warned against it because they failed to show a clear understanding of variability sources in their manufacturing processes. Instead, the agency required them to comply with specific CGMP regulations, including adequately validating manufacturing processes.

Type 4: Revalidation

Revalidation is more widely used for medical devices than drug products. It is executed when prospective validation reaches a conclusion that the manufacturing process is unable to produce the product consistently. Moreover, a criteria for revalidation may be indicated in the original validation protocol. The revalidation process may not be as comprehensive as the initial validation, especially if the situation only calls for some aspects to be repeated.

Process Validation Examples

A validated process not only decreases the likelihood of batch failures, but it also increases the productivity of the manufacturing facility because of minimized rework and rejection. Examples of processes which should be validated include sterilization, aseptic filling, heat treating, plating, and plastic injection molding. In this pharmaceutical process validation example, a typical validation master plan for biotech processes contains:

  • Validation Master Plan Approval
  • Validation Master Plan Maintenance (Document Revisions and Revision History)
  • Definitions
  • Acronyms
  • Validation Master Plan Objective
  • Validation Master Plan Scope
  • Process Validation Strategy (Introduction, Support Qualification, Critical Process Parameters, Number of Runs to be Performed, and Non-conforming Results)
  • Process Validation Documentation (Protocols, Reports, Strategy Documents/ Assessments, and Record Retention)
  • Roles and Responsibilities (Technical Services, Operations, Engineering, Quality Control Laboratory, Quality Assurance, and External Services
  • Process Description
  • Process Validation Description (Document and Support Qualification for Hold and Mixing Strategies)
  • Maintenance of the Validated and Qualified State (Schedule, Preventative Maintenance and Calibration, Annual Product Review, Change Control, Periodic Review, and Continuous Process Verification)

Establishing Documented Evidence of Controlled Processes

Documentation is a key element in the success of process validation. iAuditor by SafetyCulture is a data collection and evaluation tool designed to make it easier for validation teams to document process-related information, execute the validation protocol, and keep all records updated. With iAuditor, manufacturers can provide evidence of their capability to control pharmaceutical manufacturing processes:

  • Use process validation report templates on mobile devices such as smartphones, tablets, and iPads—even while offline.
  • Capture photo evidence of the different stages of process validation and annotate images for improved visual reference.
  • Instantly create shareable and professional-looking validation reports with all the necessary attachments in just a tap of a finger.
  • Automatically file documents in secure online storage which can also be downloaded as PDFs and sent to designated personnel via email.
  • Add up to 10 employees or validation team members using a free iAuditor account.
