Establish Height Safety Through a Fall Protection Guide

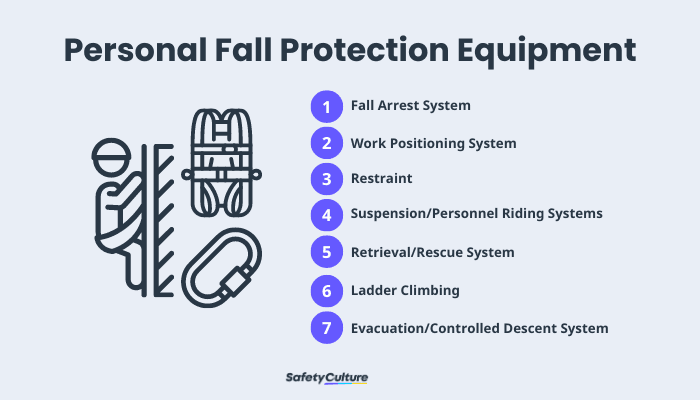

7 Types of Personal Fall Protection Equipment

Employers must ensure that the following personal fall protection system is used to comply with OSHA’s standard 1910.140:

Fall Arrest

A fall arrest system should be used when working at an elevated level and when exposed to a fall hazard. This fall protection equipment gives personnel freedom of movement. It allows them to reach a point where a fall can occur where it safely stops a person from hitting the ground.

Anchorage:	Support structure capable of supporting 5,000lb per employee attached. Should be supervised by a qualified person.
Anchorage Connector:	Anchor sling, I-beam trolley, or other
Body Support:	Full body harness
Connecting Means:	Lanyard, deceleration device, lifeline, fall arrester or a suitable combination of these

Work Positioning

A work positioning system holds a worker in place, allowing them to work hands-free at elevated vertical surfaces such as walls or window sill.

Anchorage:	Ladder or vertical rods
Body Support:	Full body harness or body belt
Connecting Means:	Anchor bolt, trolley, carabiner or rebar assembly

Restraint

A restraint allows workers to reach the work surface safely thus avoiding reaching a location from which a fall hazard exists.

Anchorage:	Support structure
Anchorage Connector:	Anchor sling and roof anchor system
Body Support:	Full body harness or body belt
Connecting Means:	Positioning lanyard

Suspension/Personnel Riding Systems

Suspension systems are designed to lower and support a worker to move vertically allowing a hands-free work environment. This is commonly used in the industry when doing paint work and window washing.

Anchorage:	Support structure
Anchorage Connector:	Anchor sling, tripod or dacit
Body Support:	Full body harness
Connecting Means:	Vertical lifeline ascender/descender and backup vertical lifeline with rope grab

Retrieval/Rescue

A retrieval system or rescue system is used primarily for when working in confined spaces. It is designed to support a worker when entering tanks, manholes, etc. Should an emergency occur, it is used to retrieve the worker from above.

Anchorage:	Support structure
Anchorage Connector:	Tripod or davit
Body Support:	Full body harness
Connecting Means:	Self-retracting lifeline and a personnel rated hoist should a ladder be unavailable or cannot be accessed

Ladder Climbing

A ladder safety system should be in place to eliminate or reduce the possibility of falling off when climbing or descending from a ladder.

For permanent fixed ladders:

Anchorage:	Permanent ladder meeting OSHA’s requirements
Anchorage Connector:	Fixed wire rope lifeline and a mobile fall arrester
Body Support:	Full body harness
Connecting Means:	Locking carabiner, fall arrester, and body support harness

For temporary, portable ladders:

Anchorage:	Overhead structural member of suitable size, shape, and strength
Anchorage Connector:	Vertical lifeline, synthetic rope or wire type, and mobile fall arrester
Body Support:	Full body harness
Connecting Means:	Lanyard

Evacuation/Controlled Descent System

This is used when assisting a rescue via raising or lowering the rescue subject onto a safe working level. This is slightly different from a harness that can be used for ascent or descent because it is meant for very brief periods of use.

Anchorage:	Support structure
Anchorage Connector:	Tie-off sling
Body Support:	Full body harness
Connecting Means:	Controlled descent device

5 Harness Inspection Safety Tips

Inspect the following for fall prevention.

1. Inspect labels and tags – Always check to ensure product labeling and tagging is legible and attached to the lanyard

2. Webbings and stitching – Webbing should be free from cuts, broken fibers, and other damage. Visually check for damage across the entire length of the equipment

3. Inspect all D-rings and metal parts – D-rings, buckles, rivets, and grommets should be free from cracks and deformities. Visually and physically check for sharp edges and distortions.

4. Inspect snap hook ends – Snap Hooks should have no hook and eye distortions. Check for evidence of corrosion or other damage.

5. Check lanyards – Lanyards should be able to carry standard bodyweight. Inspect rope lanyards for broken strands. Discard lanyards with broken strands.
